Asahi Kinzoku Kogyou Inc.

Thermal Spray Coating (HVOF)

The technology of Thermal Spray Coatings ( HVOF - High Velocity Oxygen Fuel) is developed by Asahi Kinzoku Kogyo Inc. with the supports of Japanese Government (METI) to coat the parts with complicated configurations and to meet the requirements of coating thickness and surface roughness as sprayed (without grinding).

Environmental Issue

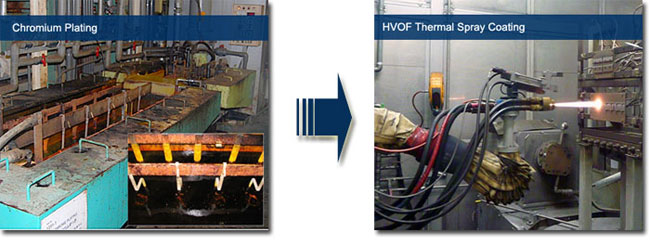

HVOF Thermal Spray Coatings is environment-friendly, known as alternative process of chromium plating and toxic substance free. It is important and indispensable to consider the environmental issue in the future of aerospace industry. Asahi's HVOF process is the one of the answer to this.

chrom-hvof_01

Aim toward the future
Asahi newly installed 2nd HVOF facility in Dec, 2008, which is in process of qualification from Boeing BAC5851 Class 2, Grade B. Asahi will continually research and develop the capability and the possibility of our HVOF.

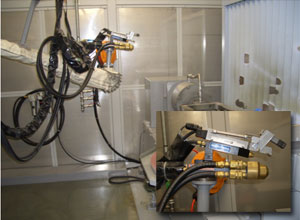

Thermal Spray Coating (HVOF)
- Propylene fuel -

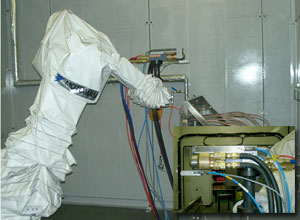

Thermal Spray Coating (HVOF)
- Hydrogen fuel -

Spec:

BAPS194-003 (Bombardier)
BAC5851 Class 2, Grade A (Boeing)

Facility info:

Work Size:
1500mm X 500mm

Spray Gun:
DJ2700 (Sluzer Metco)

Control Unit:
DJCEH-HPJ (Sluzer Metco)

Powder Feed Unit:
9MPE-DJ (Sluzer Metco)

Powder Material:
WOKA3653 (WC10CO4CR)

Spec:

BAC5851 Class 2, Grade B (Boeing)
* in process of qualification*

Facility info

Work Size:
3000mm X 500mm

Spray Gun:
2600DJM (Sluzer Metco)

Control Unit:
MultiCoat (Sluzer Metco)

Powder Feed Unit:
SINGLE-220-AH (Sluzer Metco)

Powder Material:
SM5847 (Tungsten Carbide Chromium)
DIAMALLOY2005NS
(Tungsten Carbide Cobalt)
